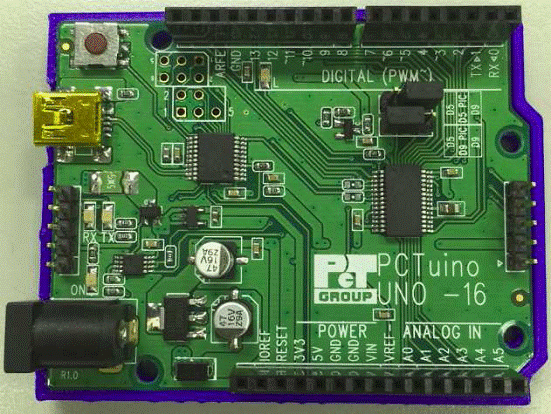

PCTuino

名稱: PCTuino
品牌: 所有產品線
概述:

Microchip PIC24 16-bit MCU Power for ArduinoTM Community

產品介紹

Microchip PIC24 16-bit MCU Power for ArduinoTM Community


• Open source electronics platform based on ArduinoTM UNO.
• The board size is the same as ArduinoTM UNO.
• Firmware development by PCTuino/MPLAB X IDE
• Hardware compatible with ArduinoTM UNO
• Compatible with many existing ArduinoTM Shields



Specification:

Microcontroller

PIC24FV16KM202

Operating Voltage

5V

Digital I/O Pins

14

Analog Input Pins

6

PWM Pins

5

UART

1

SPI

1

I2C

1

DC Current per I/O Pin

25mA

Flash Memory

16Kbytes

SRAM

2Kbytes






Documents:

PCTuino UNO16_Word_TW  [Download]

PCTUINO_UNO16 Schematic_V1.0_20141008 [Download]
